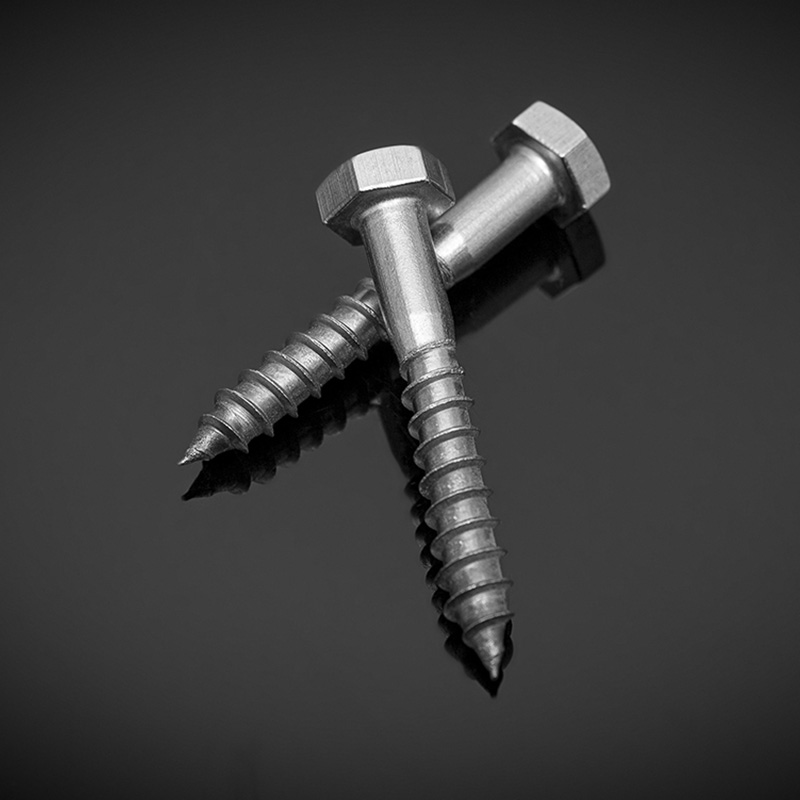

Head Features |
Special self-tapping wood thread |
Rod Features |
Sharp tooth tip design |
Core Purpose |
Wood connection, enhanced grip |
Advantages and Features |
Applicable to wood surfaces to prevent loosening |
Typical Uses |
Wood connection, furniture manufacturing, fastening of wooden structures. |
Key Indicators for Selection |
Bolt diameter, length, wood thread type, tensile strength, corrosion resistance. |
Industry-Specific Requirements |
Furniture manufacturing: suitable for wood fixing, enhanced grip, and prevention of loosening. Timber structure construction: bolts designed specifically for wood. |

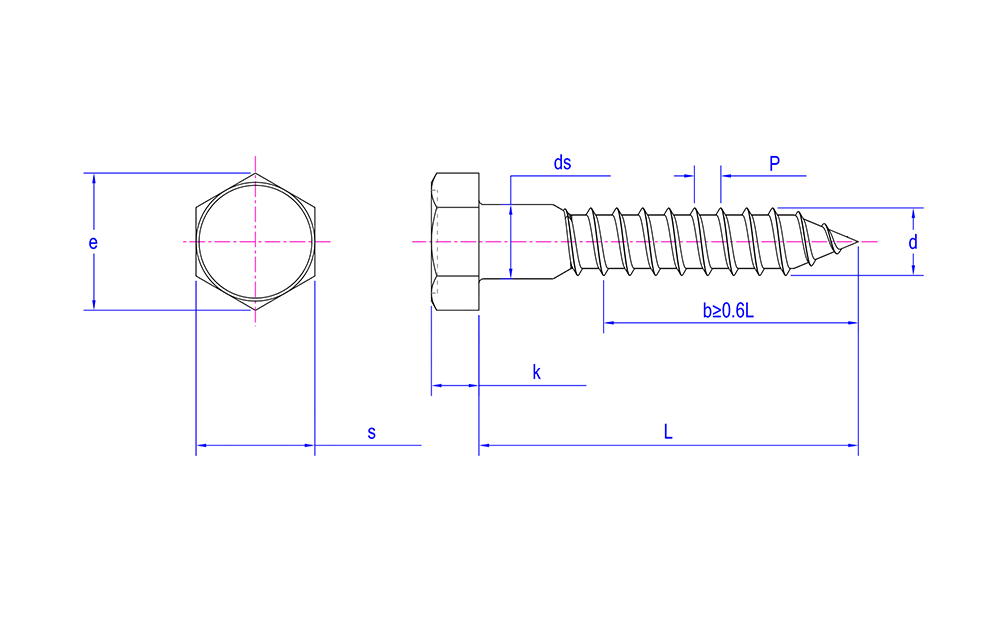

Mon | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
P | 1.6 | 2 | 2.5 | 2.8 | 3 | 3.5 | 4 | 5 | 6 |
ds max | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
ds min | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 |
k max | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 |
k min | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 |
s max | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
s min | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 |
e min | 7.5 | 8.63 | 10.89 | 13.07 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 |
ThreadTolerance: 6gstandardDIN 13-15、DIN 13-12Rod diameter dd≤M20:A2-70、A4-70;M20<d≤M39:A2-50、A4-50;d≥M39:C3、C4;d<M39
