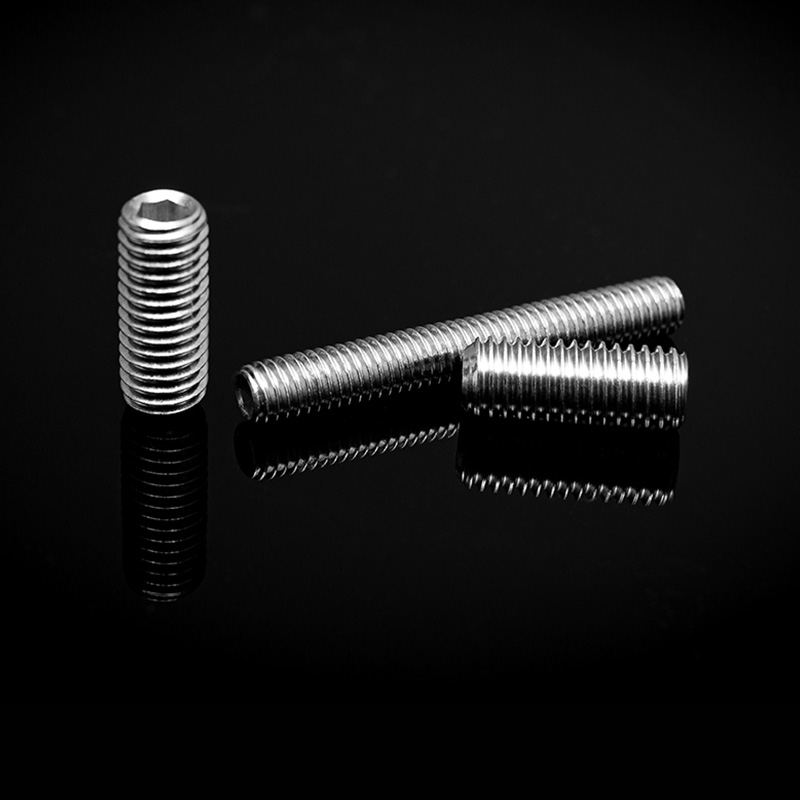

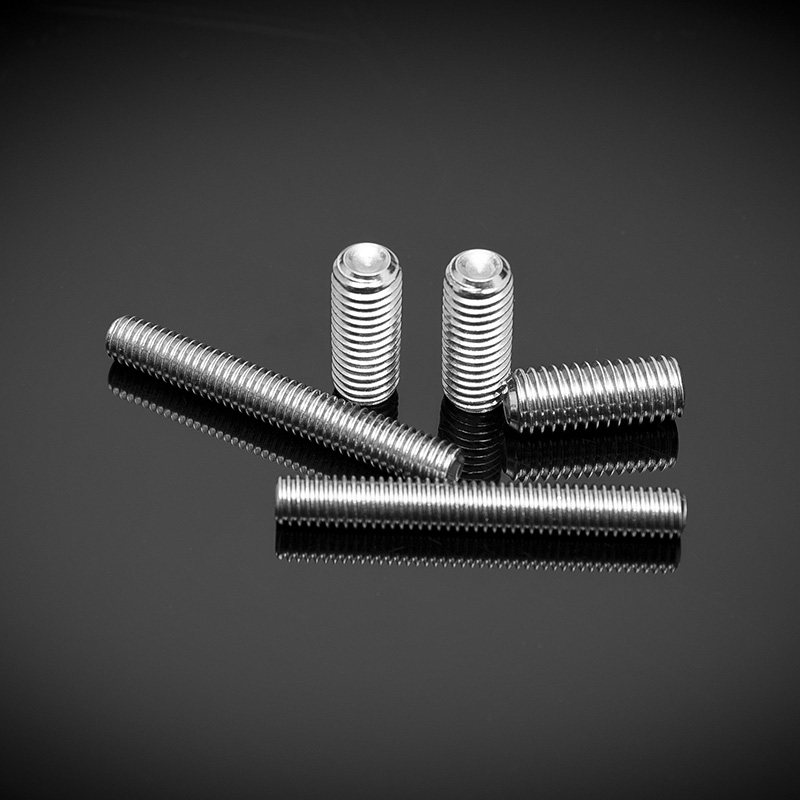

DIN 913 Stainless Steel Hexagon Socket Set Screws With Flat Point


DIN 913 Stainless Steel Hexagon Socket Set Screws With Flat Point

Head Features

Flat head

Rod Features

No thread (tightening function)

Core Purpose

For fixing and adjusting the position of mechanical parts

Advantages and Features

Not easy to loosen after tightening, easy to adjust

Typical Uses

Commonly used for adjusting and fixing mechanical equipment

Key Indicators for Selection

Screw length, diameter, material

Industry-Specific Requirements

Mechanical industry: suitable for occasions that require frequent adjustment and precise positioning.

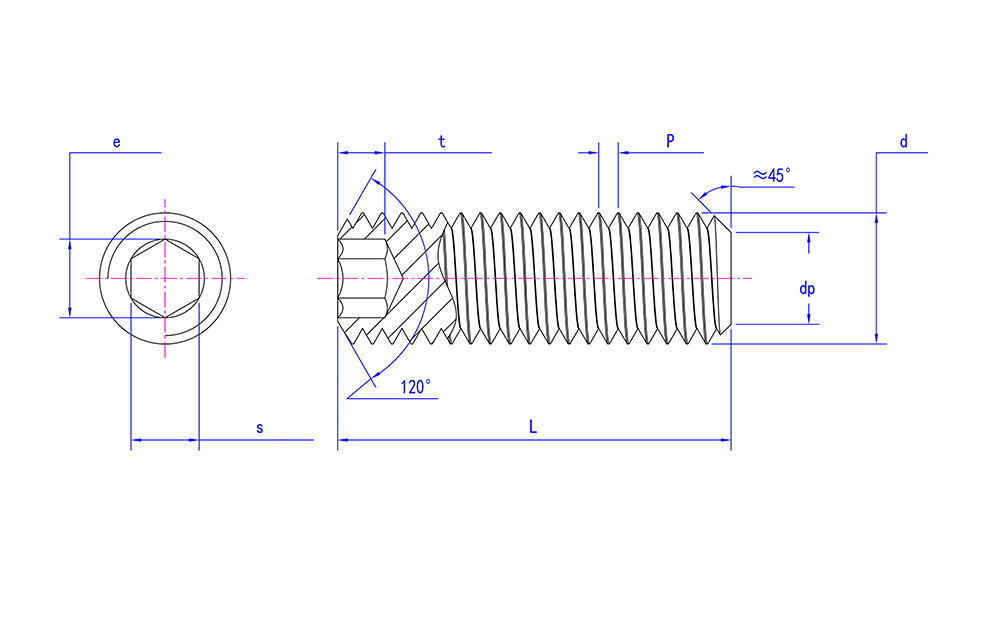

Product specification:

Mon M1.4 M1.6 M1.8 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
P 0.3 0.35 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
dp max 0.7 0.8 0.9 1 1.5 2 2.5 3.5 4 5.5 7 8.5 10 12 13 15 17 18
dp min 0.45 0.55 0.65 0.75 1.25 1.75 2.25 3.2 3.7 5.2 6.64 8.14 9.64 11.57 12.57 14.57 16.57 17.57
e min 0.803 0.803 0.803 1.003 1.427 1.73 2.3 2.87 3.44 4.58 5.72 6.86 6.86 9.15 11.43 11.43 13.72 13.72
s min 0.711 0.711 0.711 0.889 1.27 1.52 2.02 2.52 3.02 4.02 5.02 6.02 6.02 8.025 10.025 10.025 12.032 12.032
s max 0.724 0.724 0.724 0.902 1.295 1.545 2.045 2.56 3.08 4.095 5.095 6.095 6.095 8.115 10.115 10.115 12.142 12.142
t min 0.6 0.7 0.8 0.8 1.2 1.2 1.5 2 2 3 4 4.8 5.6 6.4 7.2 8 9 10
